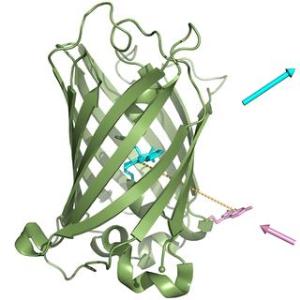

JACS - Biosynthesis of a fluorescent protein with extreme pseudo-Stokes shift by introducing a genetically encoded non-natural amino acid outside the fluorophore. A novel kind of fluorescent protein relying on the intramolecular interplay between two different fluorophores, one of chemical origin and one of biological origin, was developed.
[Credit: A. Skerra / TUM] |
In bioresearch this protein is commonly known as "GFP" (= green fluorescent protein). It emits a bright green glow and stems originally from a jellyfish that uses the protein to make itself visible in the darkness of the deep sea. The team chose a pale lavender coumarin pigment, serving as side chain of a non-natural amino acid, as the synthetic group. The scientists "fed" this artificial amino acid to a laboratory culture of Escherichia coli bacteria - the microorganism workhorses of genetic engineering, whose natural siblings are also found in the human intestine. Since the team had transferred the modified genetic blueprints for the GFP to the bacteria – including the necessary biosynthesis machinery - it incorporated the coumarin amino acid at a very specific site into the fluorescent protein.
This spot in the GFP was carefully chosen, explains Professor Skerra: "We positioned the synthetic amino acid at a very close distance from the fluorescence center of the natural protein." The scientists employed the principle of the so-called Foerster resonance energy transfer, or FRET for short. Under favorable conditions, this process of physical energy transfer, named after the German physical chemist Theodor Foerster, allows energy to be conveyed from one stimulated pigment to another in a radiation-less manner.
It was precisely this FRET effect that the scientists implemented very elegantly in the new fluorescent protein. They defined the distance between the imported chemical pigment and the biological blue-green (cyan, to be more precise) pigment of the jellyfish protein in such a way that the interplay between the two dyes resulted in a completely novel kind of fluorescent chimeric biomolecule. Because of the extreme proximity of the two luminescent groups the pale lavender of the synthetic amino acid can no longer be detected; instead, the typical blue-green color of the fluorescent protein dominates. "What is special here, and different from the natural GFP, is that, thanks to the synthetically incorporated amino acid, the fluorescence can be excited with a commercially available black-light lamp in place of an expensive dedicated LASER apparatus," explains Sebastian Kuhn, who conducted these groundbreaking experiments as part of his doctoral thesis.
According to Skerra, the design principle of the novel bio-molecule, which is characterized by a particularly large and hard to achieve wavelength difference between excitation and emitted light, should open numerous interesting applications: "We have now demonstrated that the technology works. Our strategy will enable the preparation of customized fluorescent proteins in various colors for manifold future purposes." This research project was financially supported by the German Research Foundation (DFG) as part of the Excellence Cluster "Munich Center for Integrated Protein Science" (CIPS-M).
